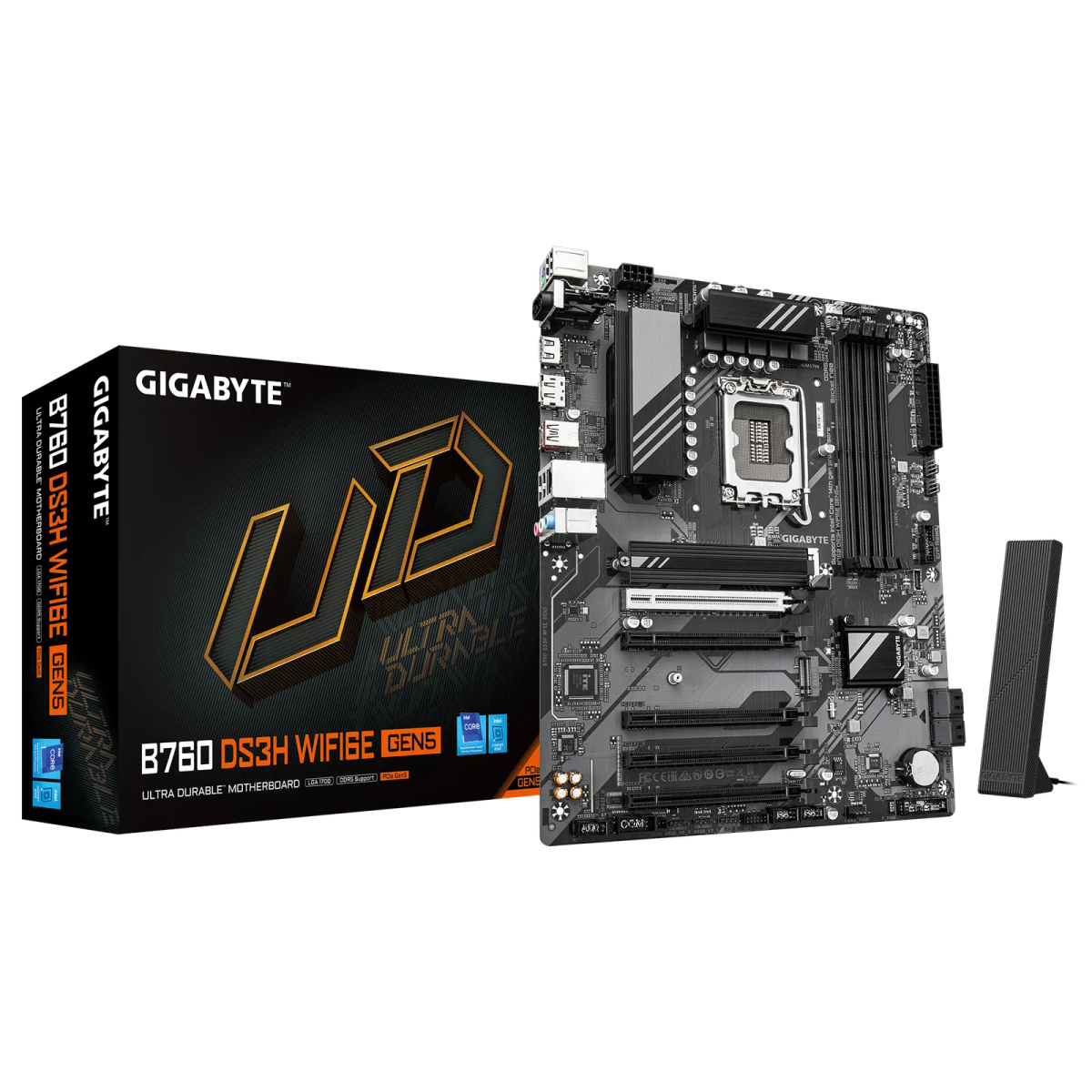

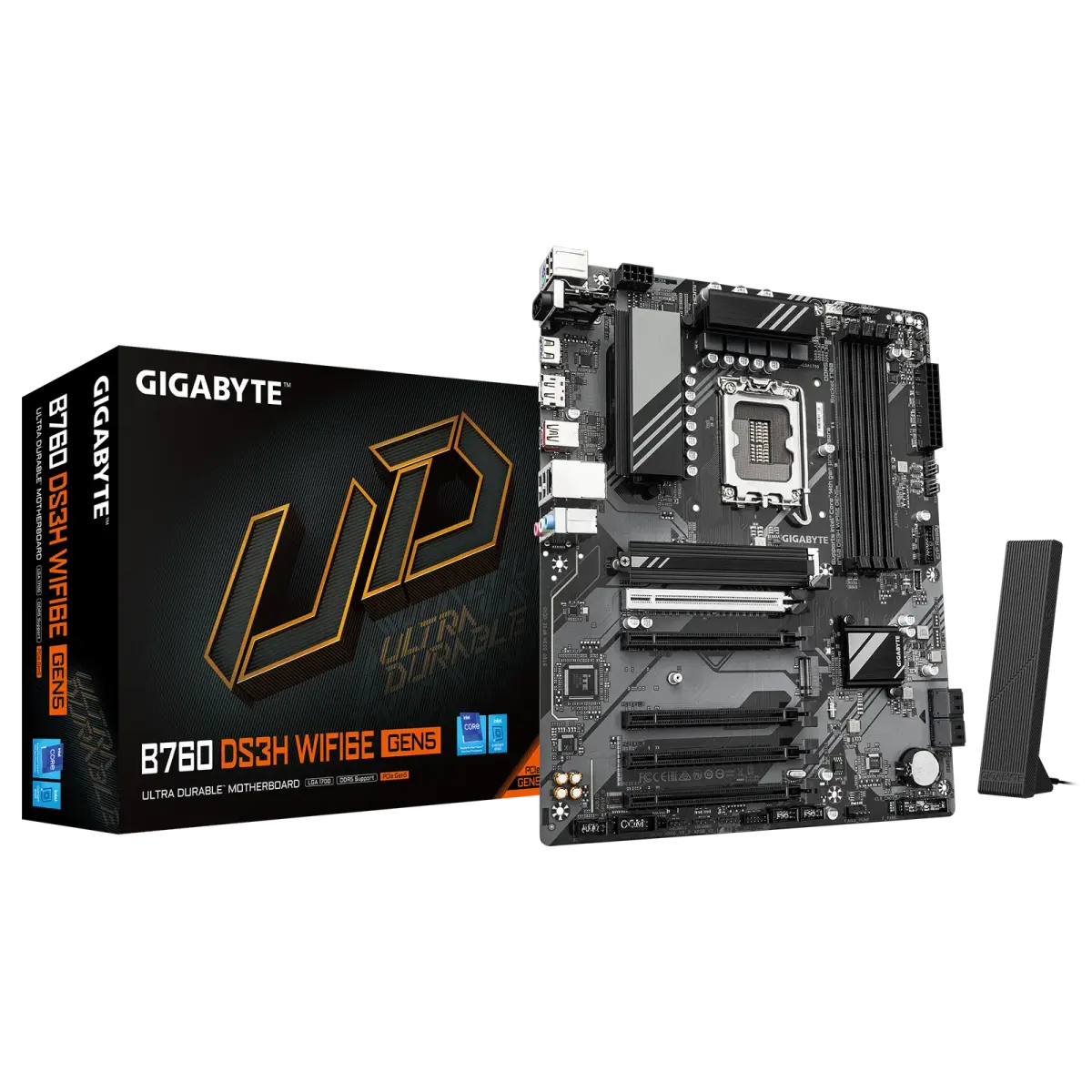

לוח אם – Gigabyte B760 DS3H WIFI6E GEN5 ATX LGA1700 DDR5 - צבע שחור
מק"ט: B760 DS3H WF6E GEN5
לוח אם איכותי מבית Gigabyte, בעל תושבת LGA1700, ערכת שבבים B760, תאימות לזכרונות DDR5 ובעל יציאות תצוגה של HDMI ,DisplayPort.
₪585.00כולל מע"מ
במלאיפריסת תשלומים
₪585.00 לחודש
עד 1 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Gigabyte |
| תמיכה במעבדים | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core Pentium® Gold and Celeron® Processors (Go to GIGABYTE's website for the latest CPU support list) L3 cache varies with CPU |
| תמיכה בזיכרונות | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules 4x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information) |
| גרפיקה מובנית | :Integrated Graphics Processor-Intel® HD Graphics support 1x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz Support for HDMI 2.1 version and HDCP 2.3* Support for native HDMI 2.1 TMDS compatible ports** 1x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz Support for DisplayPort 1.2 version and HDCP 2.3* (Graphics specifications may vary depending on CPU support) |
| חריצי הרחבה | :CPU 1x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot* :Chipset 4x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_3~PCIEX1_5) |
| USB | :Chipset 1x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support 1x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header 1x USB 3.2 Gen 2 Type-A port (red) on the back panel 2x USB 3.2 Gen 1 ports available through the internal USB header 4x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4x USB 2.0/1.1 ports available through the internal USB headers |
| ממשק אחסון | :CPU 1x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) :Chipset 1x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| שמע | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings* Support for S/PDIF Out |
| כרטיס רשת קווי | Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) |
| מודול תקשורת אלחוטית | Intel® Wi-Fi 6E AX210 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment) |
| חיבורים פנימיים | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x CPU fan header 1x CPU fan/water cooling pump header 3x system fan headers 1x system fan/water cooling pump header 3x addressable RGB Gen2 LED strip headers 1x RGB LED strip header 2x M.2 Socket 3 connectors 4x SATA 6Gb/s connectors 1x front panel header 1x front panel audio header 1x S/PDIF Out header 1x USB Type-C® header, with USB 3.2 Gen 1 support 1x USB 3.2 Gen 1 header 2x USB 2.0/1.1 headers 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1x serial port header 1x Q-Flash Plus button 1x reset button 1x reset jumper 1x Clear CMOS jumper |
| חיבורים ויציאות | 1x PS/2 keyboard/mouse port 2x antenna connectors (2T2R) 1x USB Type-C® port, with USB 3.2 Gen 2×2 support 1x USB 3.2 Gen 2 Type-A port (red) 4x USB 2.0/1.1 ports 1x HDMI port (Note) 1x DisplayPort (Note) 1x RJ-45 port 3x audio jacks (Note) Actual support may vary by CPU |
| BIOS | 1x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| תכונות ייחודיות | Support for GIGABYTE Control Center (GCC) Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications* Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| תוכנות מצורפות | Norton® Internet Security (OEM version) LAN bandwidth management software |
| תצורה | ATX Form Factor; 30.5cm x 24.4cm |
