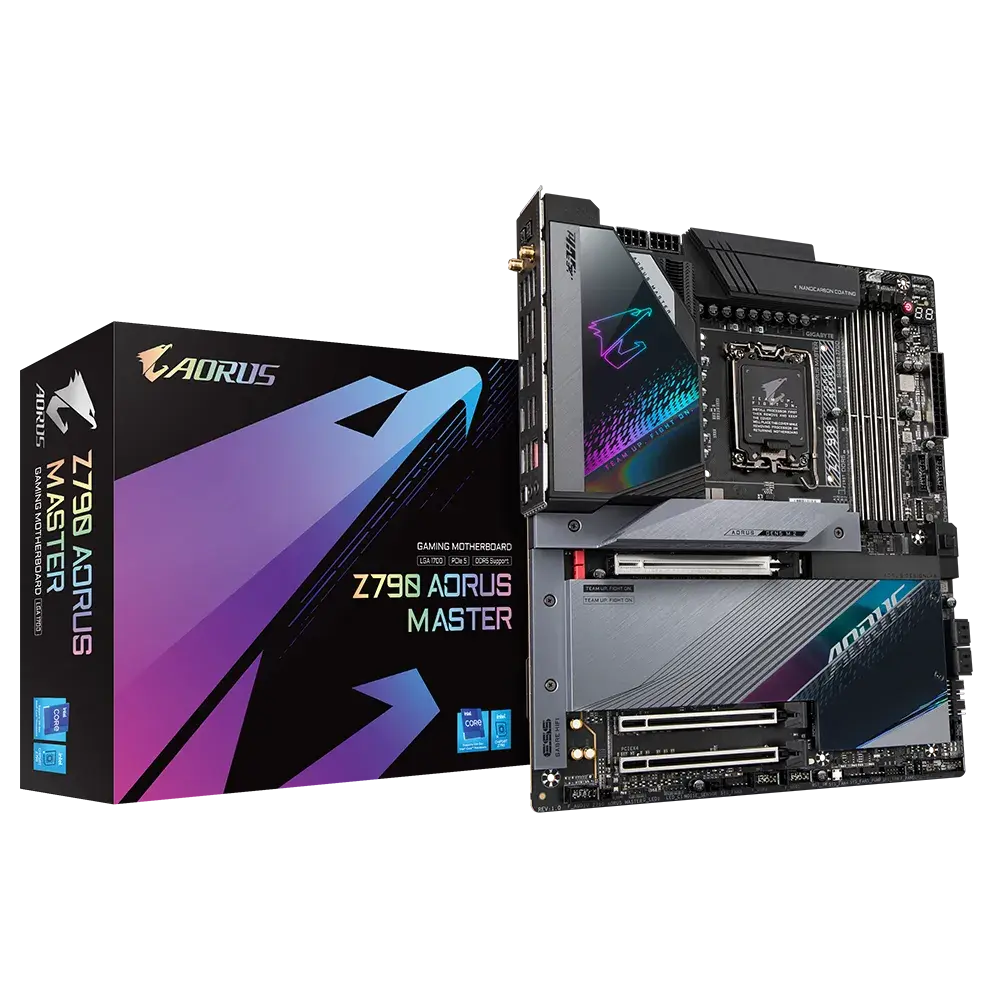

לוח אם – Gigabyte Z790 AORUS MASTER E-ATX LGA1700 DDR5 - צבע שחור
מק"ט: Z790 AORUS MASTER X
לוח אם איכותי מבית Gigabyte, בעל תושבת LGA1700, ערכת שבבים Z790, תאימות לזיכרונות DDR5 ובעל יציאת תצוגה של DisplayPort.
₪2,050.00כולל מע"מ
אזל במלאיפריסת תשלומים
₪2,050.00 לחודש
עד 5 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Gigabyte |
| תמיכה במעבדים | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors* L3 cache varies with CPU Please refer to "CPU Support List" for more information* |
| תמיכה בזיכרונות | Support for DDR5 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules 4x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information) |
| גרפיקה מובנית | Integrated Graphics Processor-Intel® HD Graphics support 1x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support) |
| חריצי הרחבה | :CPU 1x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector :Chipset 1x PCI Express x16 slot, supporting PCIe 4.0 (BIOS setting required) and running at x4 (PCIEX4) 1x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) |
| USB | :Chipset 3x USB Type-C® ports, with USB 3.2 Gen 2x2 support (2 ports on the back panel, 1 port available through the internal USB header) :Chipset+2 USB 3.2 Gen 2 Hubs 1x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support 7x USB 3.2 Gen 2 Type-A ports (red) on the back panel :Chipset+2 USB 3.2 Gen 1 Hubs 8x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) :Chipset+USB 2.0 Hub 4x USB 2.0/1.1 ports available through the internal USB headers |
| ממשק אחסון | :CPU 1x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU) 1x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) :Chipset 1x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) 1x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 1x M.2 connector (Socket 3, M key, type 2280/2260 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 4x SATA 6Gb/s connectors RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices |
| שמע | Realtek® ALC1220-VB CODEC The front panel line out jack supports DSD audio* ESS ES9118 DAC chip Support for DTS:X® Ultra High Definition Audio 2/4/5.1-channel You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings Support for S/PDIF Out |
| כרטיס רשת קווי | Marvell® AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
| מודול תקשורת אלחוטית | Intel® Killer™ Wi-Fi 6E AX1690 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate (Actual data rate may vary depending on environment and equipment) Bluetooth version may change with updates. See the Wi-Fi chip vendor's website for details |
| חיבורים פנימיים | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 1x CPU fan header 1x water cooling CPU fan header 4x system fan headers 4x system fan/water cooling pump headers 2x addressable LED strip headers 2x RGB LED strip headers 5x M.2 Socket 3 connectors 4x SATA 6Gb/s connectors 1x front panel header 1x front panel audio header 1x USB Type-C® header, with USB 3.2 Gen 2x2 support 2x USB 3.2 Gen 1 headers 2x USB 2.0/1.1 headers 1x noise detection header 2x Thunderbolt™ add-in card connectors 1x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1x power button 1x reset button 1x reset jumper 1x Clear CMOS jumper 2x temperature sensor headers Voltage Measurement Points |
| חיבורים ויציאות | 1x Q-Flash Plus button 1x Clear CMOS button 2x SMA antenna connectors (2T2R) 1x DisplayPort (Note) 1x USB Type-C® port, with USB 3.2 Gen 1 support 2x USB Type-C® ports, with USB 3.2 Gen 2x2 support 7x USB 3.2 Gen 2 Type-A ports (red) 4x USB 3.2 Gen 1 ports 1x RJ-45 port 1x optical S/PDIF Out connector 2x audio jacks (Note) Actual support may vary by CPU |
| BIOS | 1x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| תכונות ייחודיות | Support for GIGABYTE Control Center (GCC) Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| תוכנות מצורפות | Norton® Internet Security (OEM version) LAN bandwidth management software Service discontinued as a result of contract termination by the software provider |
| תצורה | E-ATX Form Factor; 30.5cm x 26.0cm |
